You can view our Handrail Image Gallery Here
We have a large selection of stainless steel handrail fittings designed to provide easy installation of your DIY handrail. Many of our components can be glued or pop-riveted together to eliminate the need to weld and polish joins.
We have fittings to suit both round and square tube.
Can\'t find what you are looking for. Try downloading our complete handrail catalogue here. If you find the part listed in this catalogue please email
316 Grade Stainless Steel
Fits inside 1.5" tube with a 1.6mm wall
Can be used as a adjustable top for a stair or ramp post or at the end of a handrail that needs to be installed on an angle
Use: Centre Post with Timber Top Rail
Length: Up to 1 meter
Diameter: 50x50
Thickness: 1.6mm
Grade: 316
Finish: Satin
Base: Square Flange Welded
Top: Oblong Flange Welded
Holes drilled based on your require
Use: End Post with Timber Top Rail
Length: Up to 1 meter
Diameter: 50x50
Thickness: 1.6mm
Grade: 316
Finish: Satin
Base: Square Flange Welded
Top: Oblong Flange Welded
Anchors: 11 x Rivet Nuts and Eye Screws spaced
Use: Corner Post with Timber Top Rail
Length: Up to 1 meter
Diameter: 50x50
Thickness: 1.6mm
Grade: 316
Finish: Satin
Base: Square Flange Welded
Top: Oblong Flange Welded
Anchors: 2 Rows of 11 x Rivet Nuts and Eye S
Corner Post for Glass to suit a 2" Round Stainless Top Rail
Length: 100mm
Diameter: 2"
Thickness: 1.6mm
Grade: 316
Finish: Mirror
Base: Round Flange Welded
Top: 90 Degree Flush Joiner
Clamps: 4 glass clamps installe

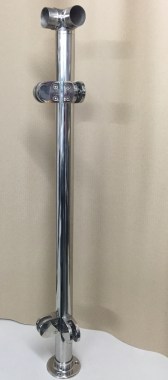

End Post for Glass to suit a 2" Round Stainless Top Rail
Length: 1000mm
Diameter: 2"
Thickness: 1.6mm
Grade: 316
Finish: Mirror
Base: Round Flange Welded
Top: 90 Degree Flush Joiner
Clamps: 4 glass clamps installe
Use: Centre Post
Length: 960mm
Width: 50mm
Thickness: 10mm
Grade: 316
Finish: Mirror
Holes: 11 (8mm) Holes at 80mm Centres
